Triple Reel Trailers

logo

About the LRE 0314

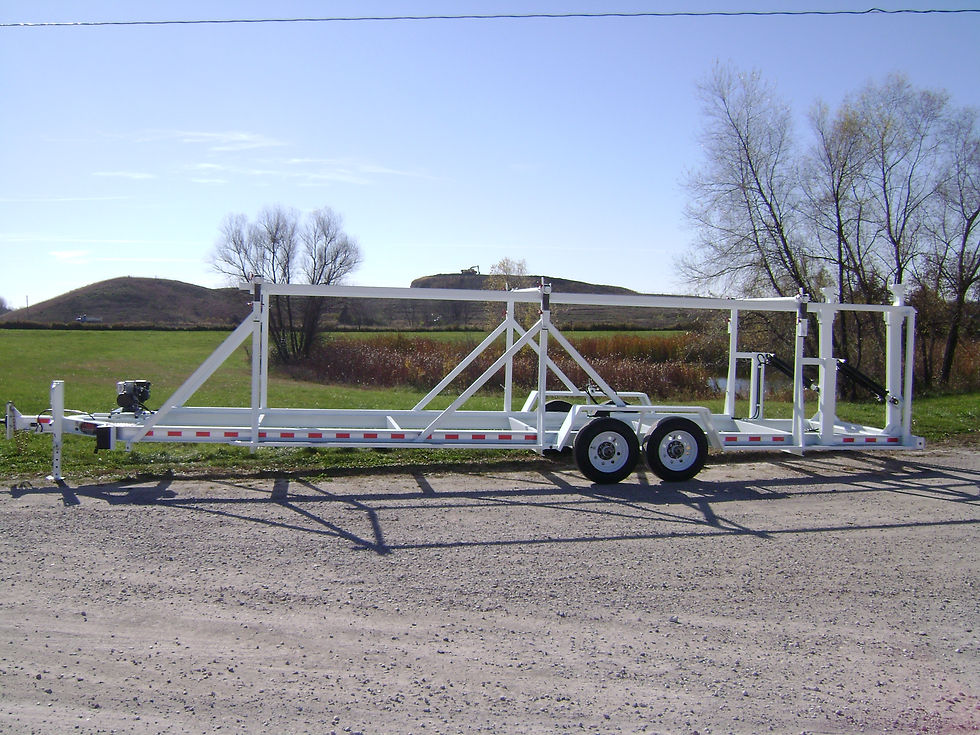

 The LRE 0314 Drop-On Triple Reel Trailer is engineered for efficient heavy-duty hauling. With a GVWR of 14,000 lbs. and a reel capacity of 10 ft. x 60 in., this trailer offers exceptional performance. Its sturdy construction features a 6-inch channel main frame, 6-inch I-beam cross members, and 2 x 3-inch rectangular tube uprights, ensuring durability and reliability. Equipped with electric brakes, standard LED lighting, and safety features like breakaway battery and warning decals, it prioritizes safety during transport. Finished with PPG industrial urethane paint in various colors, this trailer combines functionality with a professional appearance.

LRE 0314
(14,000 lbs)

LRE 0314 Features

GVWR: 14,000Lbs
Reel Size: 120" diameter, 66" width max- 3 reel capacity
NATM Compliant LED Lighting
Paint Colors: Black, White, Orange, Yellow.

Jack: 12k Dropleg

LRE 0314 Options

- 14K axle package with ST235/80R16 tires.

-8K or 10K axle package with 215/75R17.5  tires.

-Reel diameters up to 120"

-Side loaded reel racks.

-9" or 16" overspin brake.

-Retriever Assemblies.

-Tracer wire holder.

-Composite spindle bar wear pads.

-Bearing blocks for spindle bars.

-Grounding lugs.

-Stabilizer jacks.

-Full length side steps.

-Removable gantry.

-3/16" tread plate floor.

-Enclosed frame area with expanded metal.

Triple Reel
Self Loading Trailers

About the LRS 0320

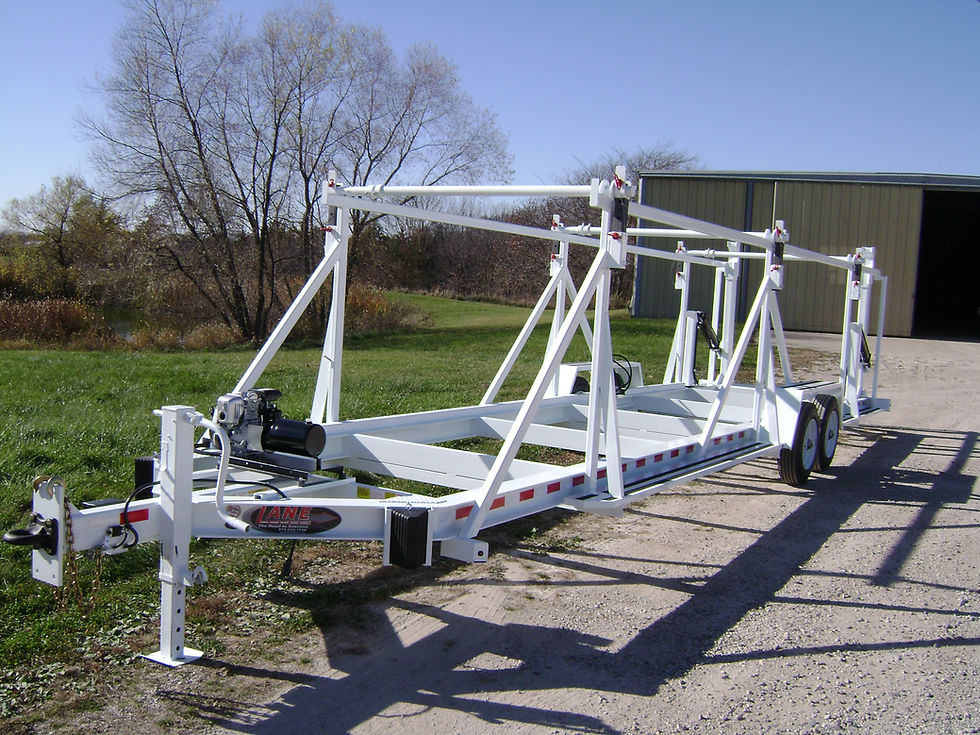

The LRG 0320 Self-Loading Triple Reel Trailer is designed for heavy-duty hauling with ease. With a robust GVWR of 20,000 lbs. and a reel capacity of 10 ft. x 60 in., it's built to handle demanding loads. Equipped with a powerful hydraulic system driven by a 5 HP Honda motor and 303 hydraulic fluid, loading and unloading are streamlined processes. Safety features like electric brakes, breakaway battery, and standard LED lighting ensure secure transport. Finished with PPG industrial urethane paint in various colors, this trailer combines functionality with a sleek appearance.

LRS 0320
(20,000 lbs)

LRS 0320 Features

GVWR: 20,000 lbs.

Main Frame: 6” I-Beam

Jack: 12K Drop Leg Jack

Tongue: 4”x6” Rec. Tubing

Reel Dimensions: 60” Wide X 120" Tall

Hydraulics: 5hp Gas Motor

Fenders: 12” Junior Channel

Catwalk: 10” Junior Channel

Paint Colors: Black, White, Yellow, Orange

LRS 0320 Options

Motor Options: 5 HP or 13 HP Honda Motor
Steps: Grip Tape

Spindle Bar: Hollowed out Version

Paint Alternative: Hot Dip Galvanizing

Misc.: Mud Flaps, Wheel Chocks, Spare Tire Mount
