The LRT 0330 turret reel trailer is a heavy-duty solution for your hauling needs. With a GVWR of 30,000 lbs., it accommodates reels up to 8 ft. in diameter x 60 in. in width and approximately 6,200 lbs. of weight per reel. This trailer has a 12 in. Ibeam main frame. It features a 4 x 10 in. bumper and 4 x 6 in. uprights. Equipped with electric or air operated brakes, ST215/75R17.5 Load Range H tires, on dual mod wheels, its running gear ensures reliable performance. Safety features include rated chains and a breakaway system with a battery box and switch. The electrical system comprises a 7 RV molded plug and standard LED lights, while accessories include a rotation jack with a single 12K spring-loaded drop leg for stability. Finished with PPG industrial urethane paint, available in white, black, orange, or yellow, this turret reel trailer is built to withstand heavy-duty usage.

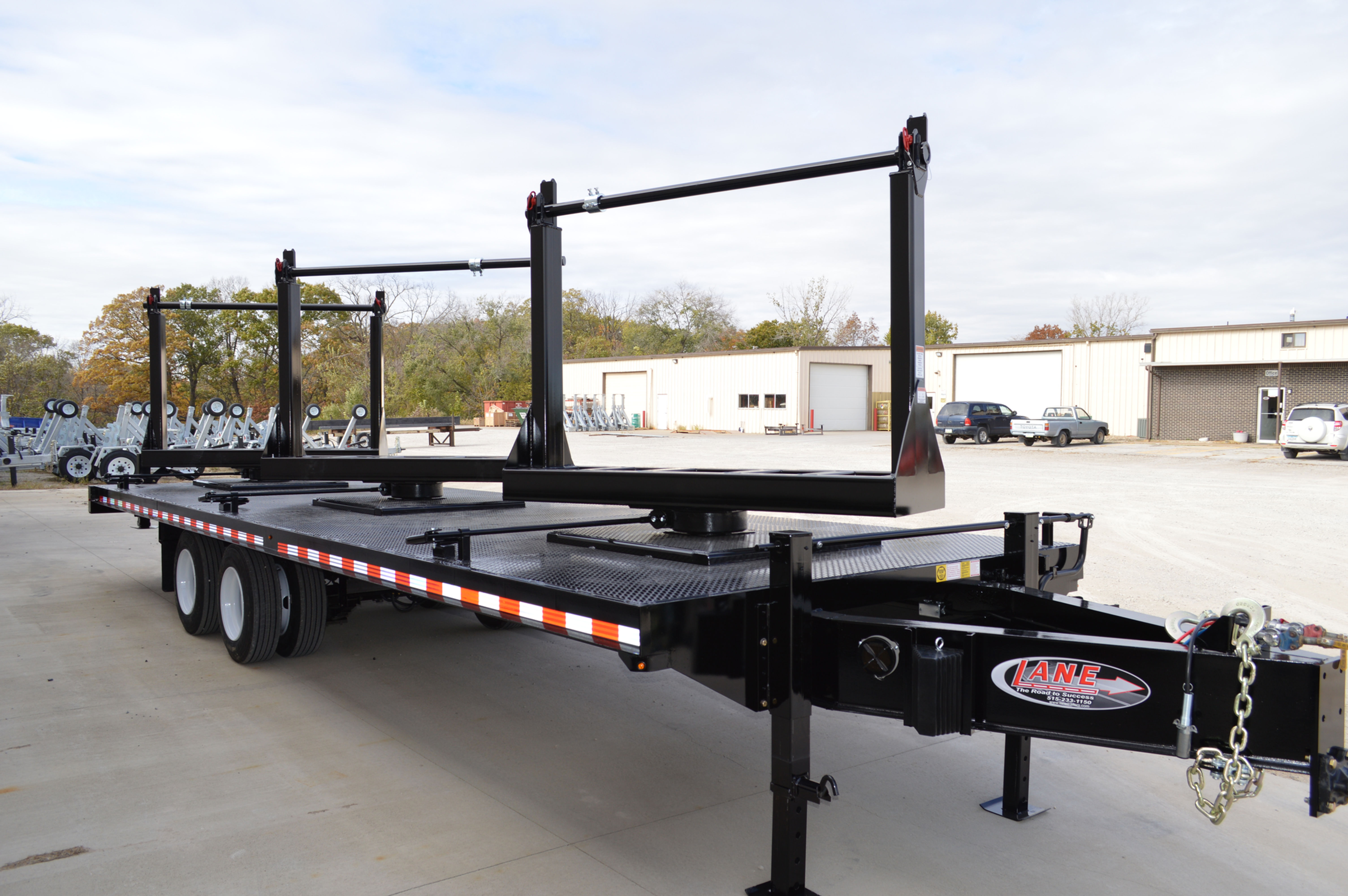

LRT 0330 | Triple Turret Reel Trailer

  • GVWR: 30,000 lbs.

    Main Frame: 12" Wideflange Ibeam

    Tongue: 12" Ibean

    Reel Size: 3’ to 10’ Diameter, 60” Width Max

    360° Worm Gear: Driven by crank and stops at any location


  • Bronze Brake: 9" or 16"
    Paint Alternative: Hot Dip Galvanizing
    Turret:  Retriever Attachment
    Spindle: Hollowed Out 2 1/2 '' available
